Products/Screw Driving Machines
Core product line

Screw Driving Machines

At a glance7 models in this line, including CB-LDLS8771-H, CB-LS6441-ZS, CB-LS5441 · screws M1.7 – M5.0 at ±0.02 mm repeat positioning accuracy, 0.37 – 0.41 s / screw · built in Dongguan, China since 2011 · MOQ one machine, 7–10 days for standard machines (20 days for custom), capacity 300 machines per month

Our core business. Nine platform configurations cover single-station bench assembly through to inline vision-guided stations that report to your MES.

7 models in this line. Chinese name: 自动螺丝机.

Most engineers arriving here go straight to one of these:

Floor-Standing Vision Screw Driving Machine
CEKCULCBZIN
CB-LDLS8771-H

Floor-Standing Vision Screw Driving Machine

  • Floor-standing frame, CCD vision positioning
  • Automatic programming for new products
  • Missing-screw detection and auto re-tightening
  • Tightening data upload to MES
Working range (X × Y × Z)
800 × 700 × 100 mm
Package gross weight
300 kg (packed)
Input power
AC 220 V, 50 Hz
Working gas source
0.4 – 0.6 MPa
Repeat positioning
±0.02 mm
Locking precision
±0.05 mm
Enquire about this machine →

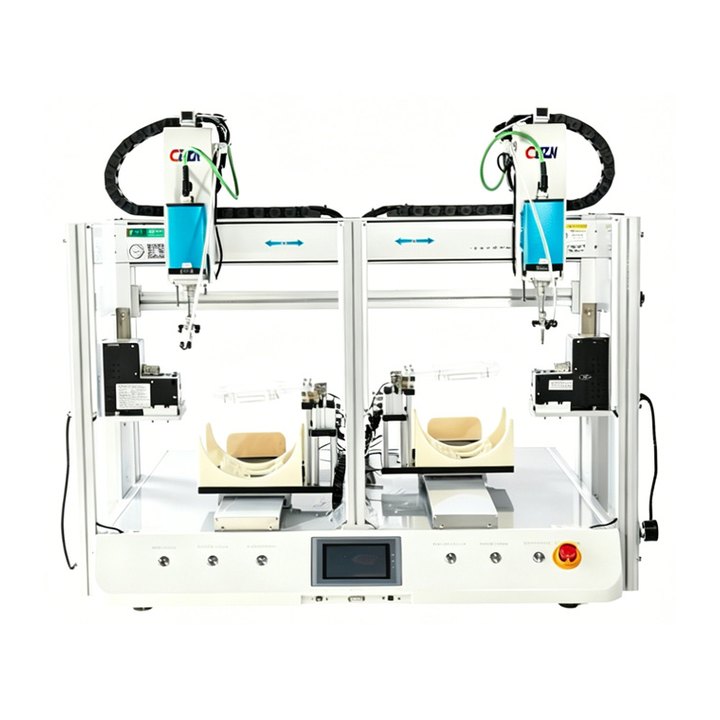

Dual-Head Double-Platform Screw Driving Machine
CEKCULCBZIN
CB-LS6441-ZS

Dual-Head Double-Platform Screw Driving Machine

  • Left and right heads, two working platforms
  • Load one platform while the other drives
  • Highest throughput of the bench range
  • Colour touch-screen teaching
Working range (X × Y × Z)
600 × 400 × 100 mm
Package gross weight
260 kg (packed)
Input power
AC 220 V, 50 Hz
Working gas source
0.4 – 0.6 MPa
Repeat positioning
±0.02 mm
Locking precision
±0.05 mm
Enquire about this machine →
Single-Head Double-Platform Screw Driving Machine
CEKCULCBZIN
CB-LS5441

Single-Head Double-Platform Screw Driving Machine

  • Single head, two platforms
  • Operator never waits for the cycle
  • Automatic screw feeding
  • Lock failure, idle-screw and float-height alarms
Working range (X × Y × Z)
500 × 400 × 100 mm
Package gross weight
110 kg (packed)
Input power
AC 220 V, 50 Hz
Working gas source
0.4 – 0.6 MPa
Repeat positioning
±0.02 mm
Locking precision
±0.05 mm
Enquire about this machine →

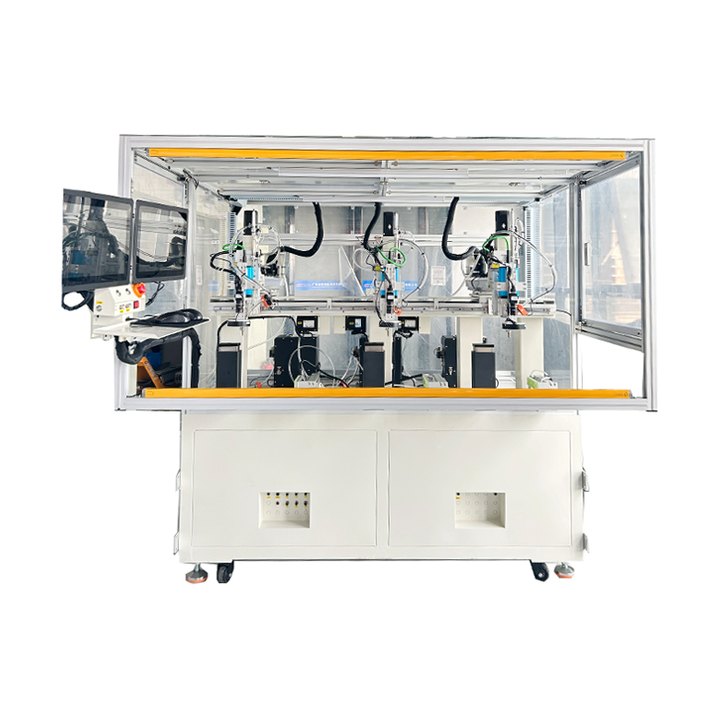

Inline Automatic Screw Locking Machine
CEKCULCBZIN
CB-LSLD6441-TB

Inline Automatic Screw Locking Machine

  • Designed to sit inside an existing conveyor line
  • No manual loading and unloading
  • Handshake with upstream and downstream stations
  • Optional MES data upload
Package gross weight
600 kg (packed)
Input power
AC 220 V, 50 Hz
Working gas source
0.4 – 0.6 MPa
Repeat positioning
±0.02 mm
Locking precision
±0.05 mm
Enquire about this machine →

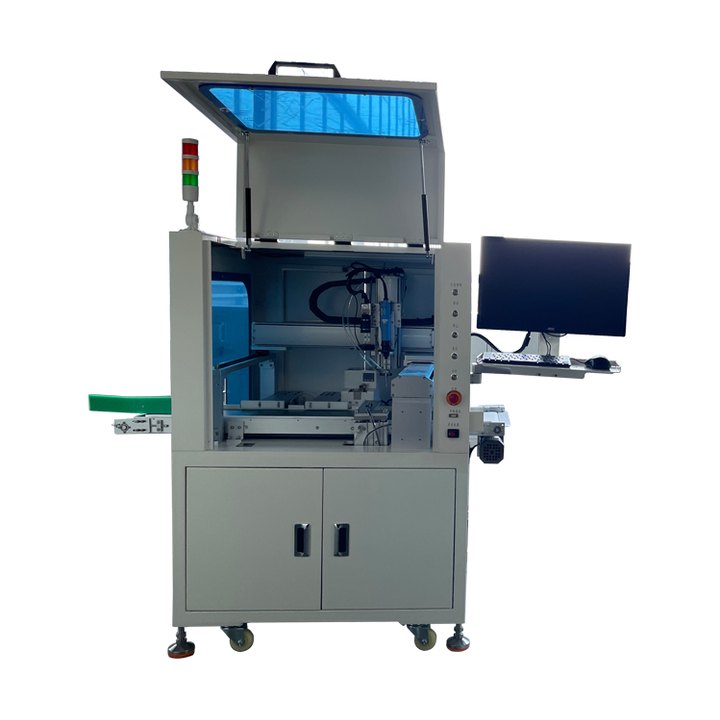

Inline Screw Driving Machine
CEKCULCBZIN
CB-LDFBLS6441-SJ

Inline Screw Driving Machine

  • Compact inline configuration
  • Fixtures configured to your product
  • Cycle time matched to your line takt
  • Torque monitoring per screw
Working range (X × Y × Z)
600 × 400 × 100 mm
Package gross weight
450 kg (packed)
Input power
AC 220 V, 50 Hz
Working gas source
0.4 – 0.6 MPa
Repeat positioning
±0.02 mm
Locking precision
±0.05 mm
Enquire about this machine →
Dual-Head Double-Platform Screw Driving Machine
CEKCULCBZIN
CB-LS64411-ZS

Dual-Head Double-Platform Screw Driving Machine

  • Two heads driving simultaneously
  • Two platforms for continuous loading
  • For higher-volume bench assembly
  • Programmable point sets
Working range (X × Y × Z)
600 × 400 × 100 mm
Package gross weight
160 kg (packed)
Input power
AC 220 V, 50 Hz
Working gas source
0.4 – 0.6 MPa
Repeat positioning
±0.02 mm
Locking precision
±0.05 mm
Enquire about this machine →

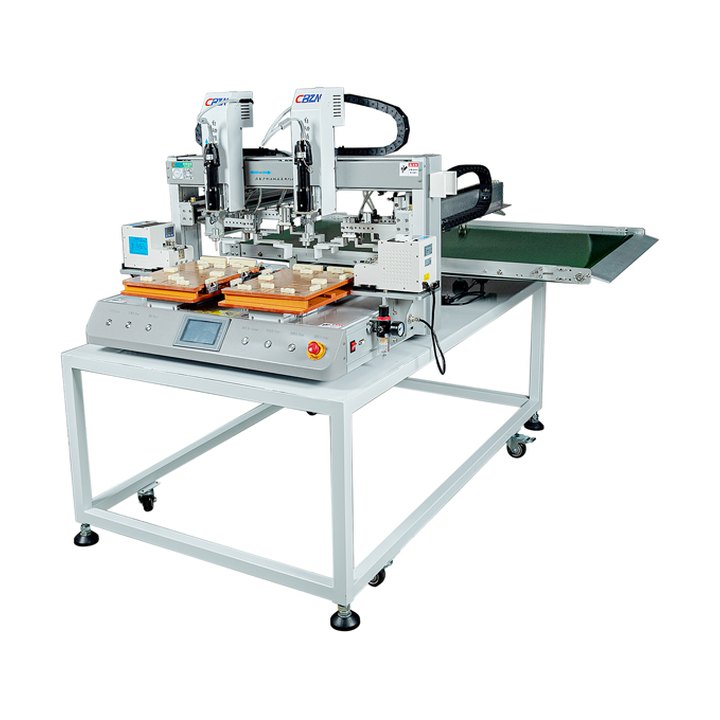

Dual-Head Double-Platform with Rear Screw Take-out
CEKCULCBZIN
CB-LS5441-HQ

Dual-Head Double-Platform with Rear Screw Take-out

  • Integrated rear screw take-out
  • Hands finished parts off the fixture
  • Reduces operator contact with the product
  • For continuous-flow benches
Package gross weight
130 kg (packed)
Input power
AC 220 V, 50 Hz
Working gas source
0.4 – 0.6 MPa
Repeat positioning
±0.02 mm
Locking precision
±0.05 mm
Enquire about this machine →
Platform specification

Data common to this range

Values are confirmed on the datasheet for your configuration.

ParameterValue
Screw size rangeM1.7 – M5.0
Locking range (X × Y × Z)500 × 400 × 100 mm
Repeat positioning accuracy±0.02 mm
Standard cycle time (arm)0.37 – 0.41 s / screw
Payload4 kg — 5 kg downward positioning
Moving speed0.1 – 800 mm/s per axis
DriveStepper / servo motors (Japan)
TransmissionTiming belt and/or precision linear guide
Power supplyAC 220 V, 50 Hz, single phase, 1.5 kW
Working air pressure0.4 – 0.6 MPa
Protection ratingIP40
Control optionsEPSON controller / PLC / PC control / teach pendant
